Composite Covers

COMPOSITES

Fiberglass Barge Covers

NABRICO Marine Products is the largest U.S. manufacturer of fiberglass hopper-barge covers — lightweight, weatherproof, and built to protect every load from the grain belt to the coastal trade.

NABRICO fiberglass barge cover #1U.S. Maker

FIBERGLASS COVERS

Largest U.S. Manufacturer

We are the largest U.S. manufacturer of fiberglass hopper-barge covers, used primarily on grain barges. We also produce fiberglass covers for barges used in the U.S. coastal trade.

HOW THEY'RE MADE

Composition

NABRICO Marine Products' barge covers are composed of Fiberglass Reinforced Plastic (FRP) laminate. The color is molded into the surface by use of a gelcoat and requires no painting.

Each barge set is comprised of male, female, and end cover sections.

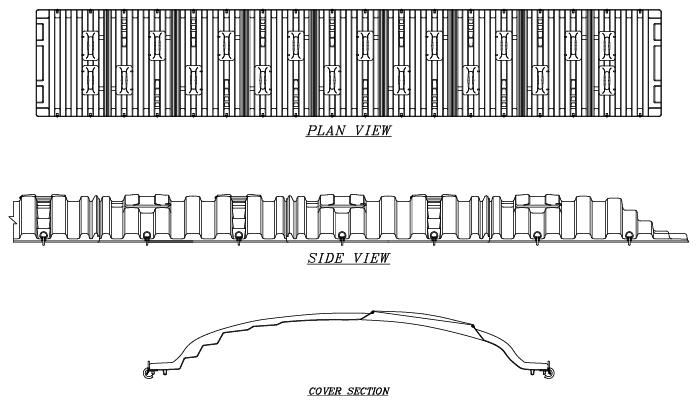

NABRICO FRP barge cover composition overview
NABRICO barge covers stacked for storage

HANDLING & STORAGE

Stacking

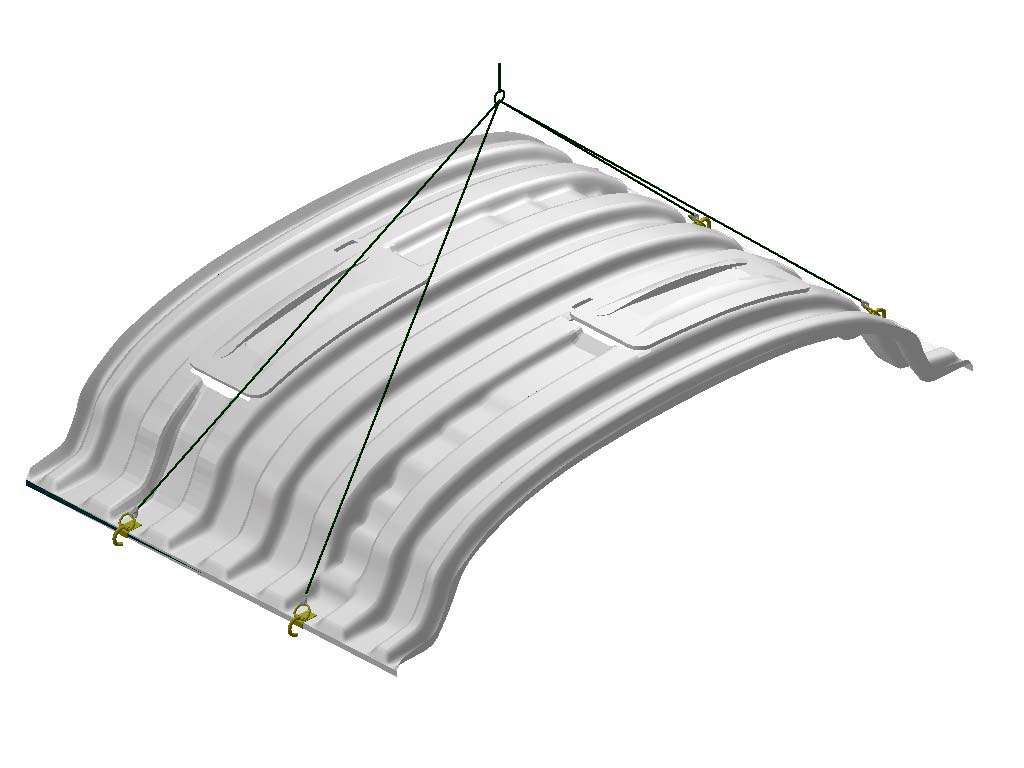

Barge covers are equipped with Lifting Eye / Clamp Assemblies for easy removal, and they are made to be stacked for storage.

Refer to the NABRICO Marine Products FRP Lift-Off Barge Covers Handling, Stacking, and Storage Procedures for complete proper instruction.

STACKING, STEP BY STEP

Built to Stack

Every NABRICO cover set is engineered to stack cleanly for storage and transport — locator pins, stack supports, and nesting profiles keep the load square and secure.

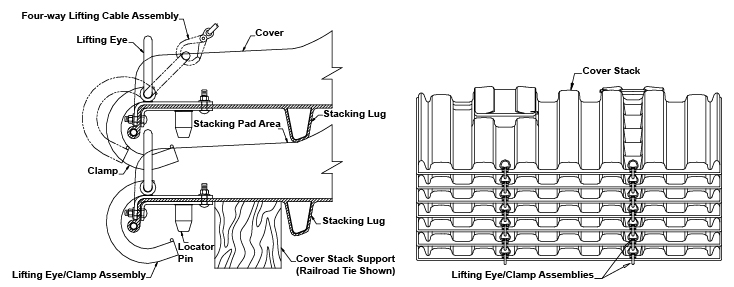

NABRICO barge cover stacking diagram showing cover stack support and locator pin
01 Stack Support Covers seat on cover stack supports with the locator pin engaged, holding the pipe edge clear and each unit aligned.
NABRICO barge cover stacking diagram showing narrow and wide cover nesting
02 Nested Profiles Narrow and wide cover sections nest together, letting a full set stack compactly without wasted deck space.
NABRICO barge cover stacking diagram showing locator pin and cover stack support
03 Locked & Ready Locator pins and stack supports lock the stack in place — square, stable, and ready for transport or long-term storage.

MORE FROM NABRICO

Related Products

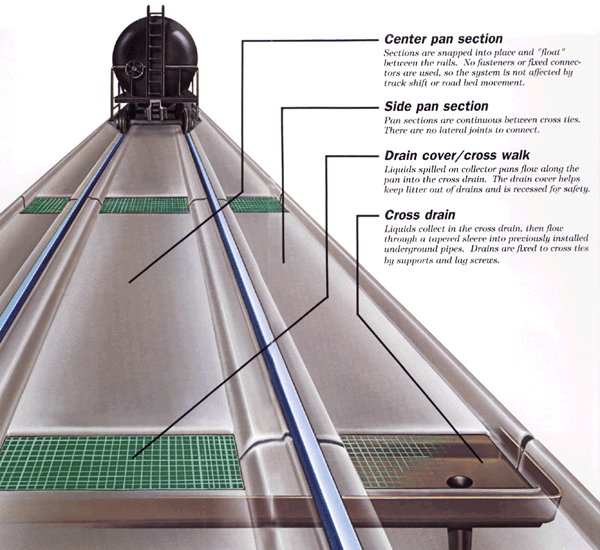

NABRICO Track Pan Collector Systems diagram

Track Pans

NABRICO Marine Products produces Track Pans for the railroad industry and industrial users that capture corrosive materials while being loaded and unloaded on railroad tracks.

Visit Syntechnics →

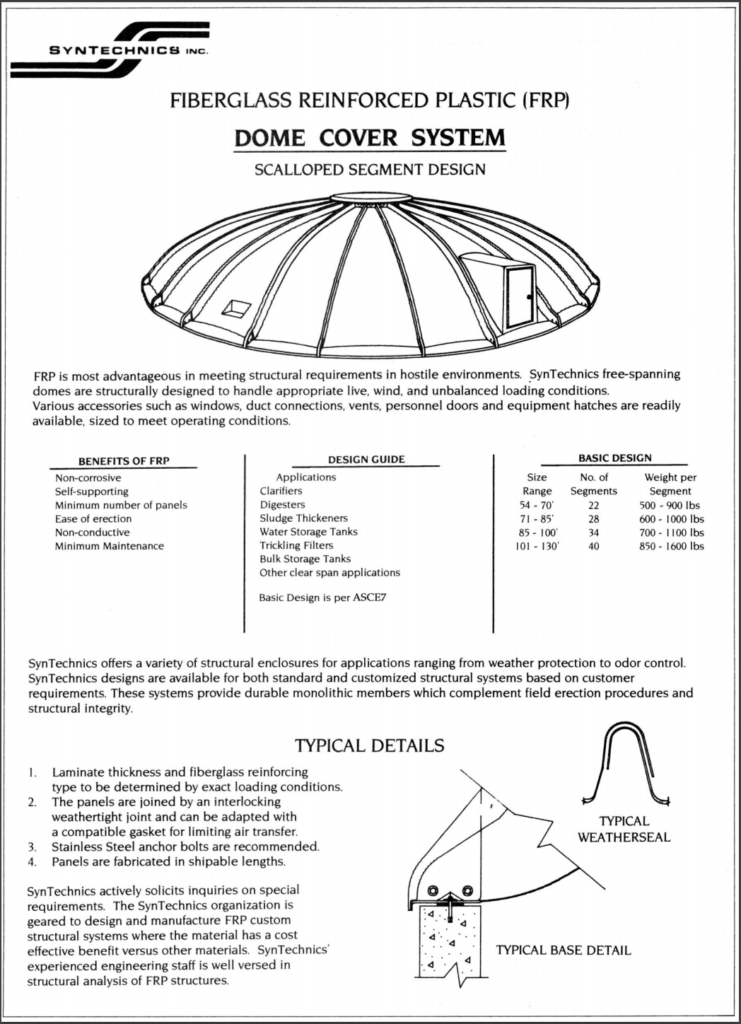

NABRICO Environmental Cover Systems

Environmental Covers

NABRICO Marine Products produces a variety of Environmental Covers for the water and waste-water treatment industries.

Visit Syntechnics →
